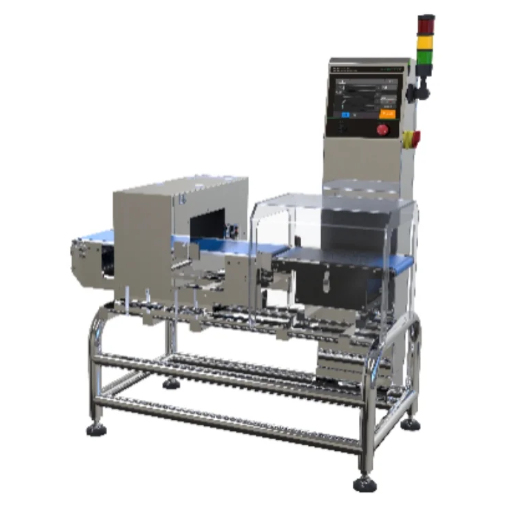

The metaldetection weighing integrated machine is a device that combines metal detection and weighing functions,aimed at ensuring product quality and compliance.It is capable of simultaneously detecting metal contaminants in products and weighing them,effectively identifying any potential quality issues.This equipment has high sensitivity and accuracy,capable of detecting tiny metalparticles and accurately measuring the weight of products.

Specification

* The detection accuracy depends on the on-site environment and the weight, size,and characteristics of the product being weighed.

Features

• Versatility: Integrates multiple product inspection modes, including dry, wet, salt containing, and aluminum-coated products, suitable for various scenarios.

• Muti-frequency Combination: Buit-in with four frequencies,allowing real-time synchronous detetion with any dual-frequency combination to ensure optimal detection frequencies for both iron and steel.

• Automatic Learning: Learning completed after two passes of good products, automatically calculating phase and other parameters without the need for manual adjustment of complex settings.

• Effect Suppression: Specialalgorithm for suppressing subtle product effects, effectively suppressing heavy salt-containing product effects to ensure detection accuracy.

• Easy Operation: Equipped with a color LCD touchscreen, featuring an intuitive and convenient human-machine interface with synchronized display of four frequencies data.

• Stability and Reliability: Utilizes waterproof variable-speed motors and overll sealing technology for the probe, ensuring stable and reliable operation with SGS IP66 certification.

• Built-in Frequency Hopping: Microscopic frequency hopping techology can counter interference from large electrical equipment such as on-site packaging machines, reducing false alarms.

• Flexible Expansion: Embedded operating system within the mainboard supports expansion via USB, printer, and network communication.

Weigh Range

Application
